SQUARE STEEL PROFILES
Product #
Fuma-Bautec's 10 mm square steel profiles meet the most demanding requirements in terms of mechanical load. They are the ideal choice for sophisticated and attractive entrance areas with a length of 250 m.
Product Overview

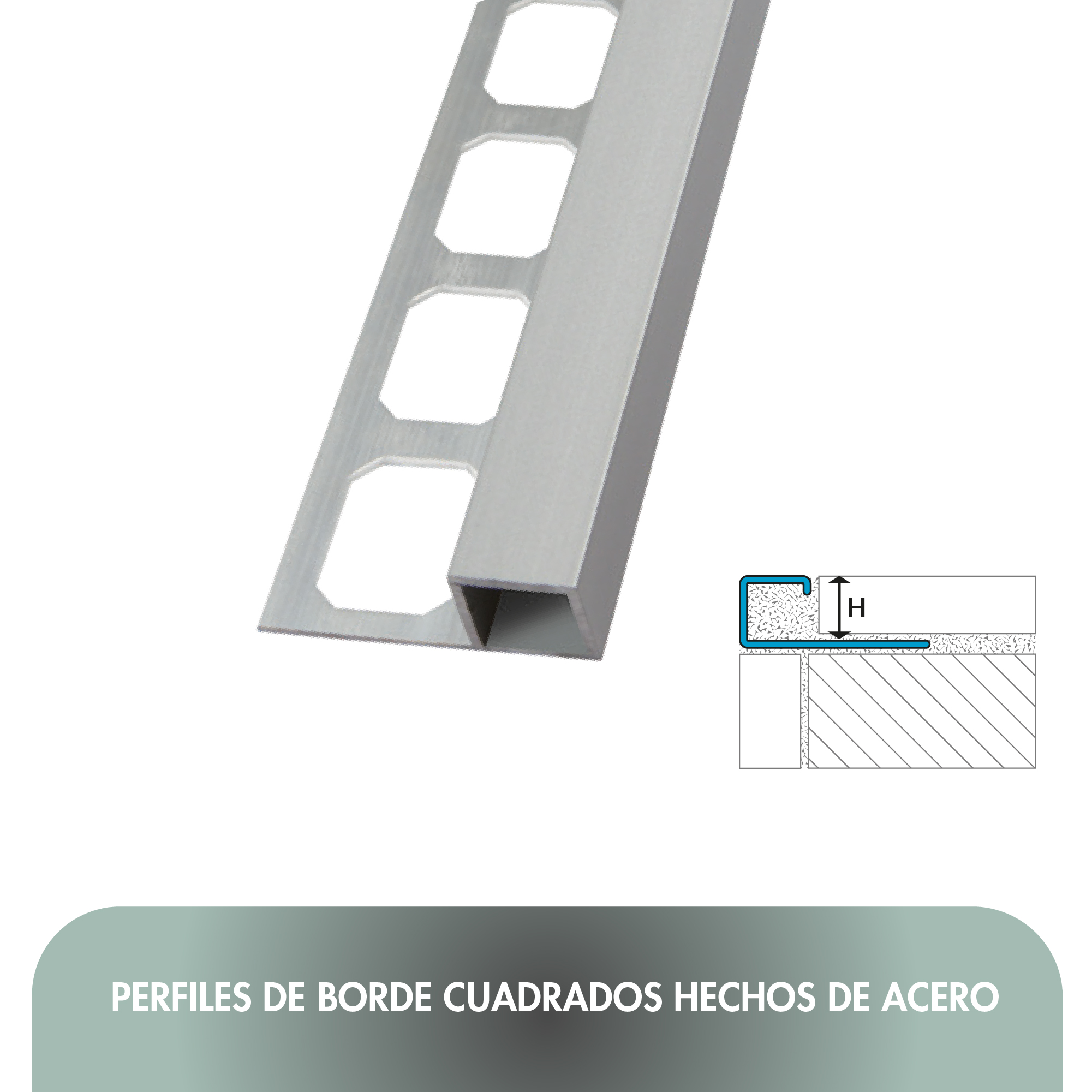

Square edge profiles from fuma-Bautec are designed for dividing areas, protecting edges and for edging. They are square in profile and the equal dimensions on all four sides allow for corners to be highly attractive in appearance. They are ideal for use where- ver walls need to meet the utmost aesthetic requirements. When square edge profiles is aligned with tiled and natural stone sur- faces, the results are first rate and elegant in design. Apart from their decorative attributes, they also provide perfect protection for corners and surface edges.
Info and Guides
-
Product Datasheets
-
Warranties
-
Marketing Information
-
Safety Datasheets
-
Approvals and Certifications
-
Installation Information
Features & Benefits
- Height: 10 mm
- Length: 250 cm
- Material:
- V2A (304) stainless steel Material number: 1.4301 Ingot X5CrNi18-10
- Fire resistance according to DIN EN13501: A1 (non-flammable)
- Linear expansion coefficient: 16 x 10-6 m/m°C
- Approx. density: 7.9 kg/dm3
- Hardness approx.: 250 HB
- Tensile strength Rma 20 °C: 500 – 700 N/mm2
- Elongation A5 at 20 °C1 %: 35%
- Yield strength Rp 1.0 at 20 °C: 250 N/mm2
Product Specifications
Details
| Product # | |
|---|---|
| Patent #(s) | |
| Available Colors/Finishes | Polished Stainless Steel (Gloss) |
| Part of System | LATICRETE |
| Country Availability | Costa Rica, Honduras, Panama |
| Suitable Substrates | |
| Packaging Summary |
Available Warranties
| WARRANTIE (English) |
|---|
