SQUARE STEEL PROFILES
Producto #

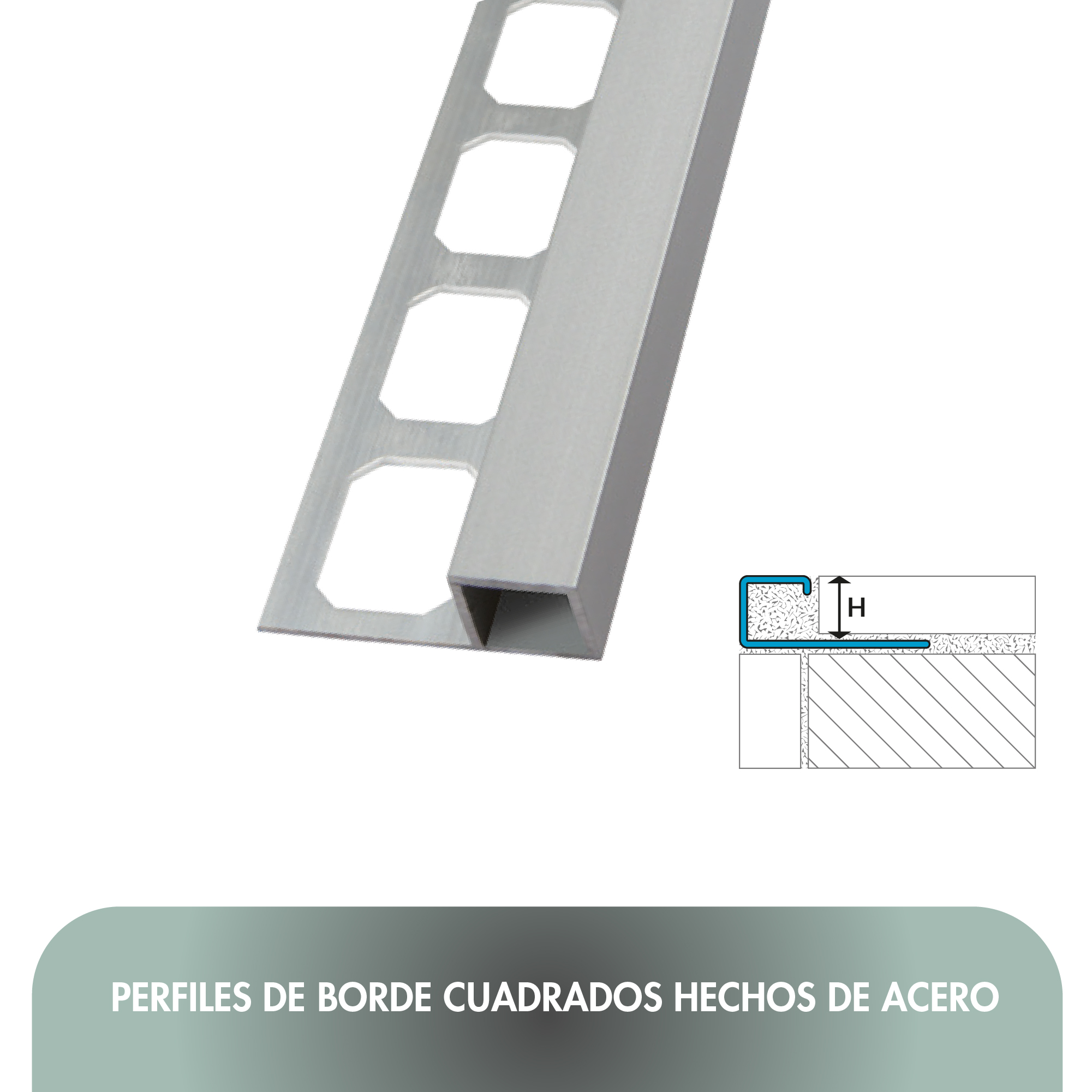

Fuma-Bautec's 10 mm square steel profiles meet the most demanding requirements in terms of mechanical load. They are the ideal choice for sophisticated and attractive entrance areas with a length of 250 m.
Descripción general del producto
Square edge profiles from fuma-Bautec are designed for dividing areas, protecting edges and for edging. They are square in profile and the equal dimensions on all four sides allow for corners to be highly attractive in appearance. They are ideal for use where- ver walls need to meet the utmost aesthetic requirements. When square edge profiles is aligned with tiled and natural stone sur- faces, the results are first rate and elegant in design. Apart from their decorative attributes, they also provide perfect protection for corners and surface edges.
Información y guías
-
Especificaciones del producto
-
Garantías
-
Información de marketing
-
Hojas de datos de seguridad
-
Aprobaciones y certificaciones
-
Información de instalación
Características y ventajas
- Height: 10 mm
- Length: 250 cm
- Material:
- V2A (304) stainless steel Material number: 1.4301 Ingot X5CrNi18-10
- Fire resistance according to DIN EN13501: A1 (non-flammable)
- Linear expansion coefficient: 16 x 10-6 m/m°C
- Approx. density: 7.9 kg/dm3
- Hardness approx.: 250 HB
- Tensile strength Rma 20 °C: 500 – 700 N/mm2
- Elongation A5 at 20 °C1 %: 35%
- Yield strength Rp 1.0 at 20 °C: 250 N/mm2
Especificaciones del producto
Detalles
| N.º de producto | |
|---|---|
| Patente núm. | |
| Colores disponibles | Polished Stainless Steel (Gloss) |
| Parte del sistema | LATICRETE |
| Disponibilidad por país | Costa Rica, Honduras, Panama |
| Sustratos adecuados | |
| Tamaños de envases |
Garantías disponibles
| WARRANTIE (English) |
|---|
