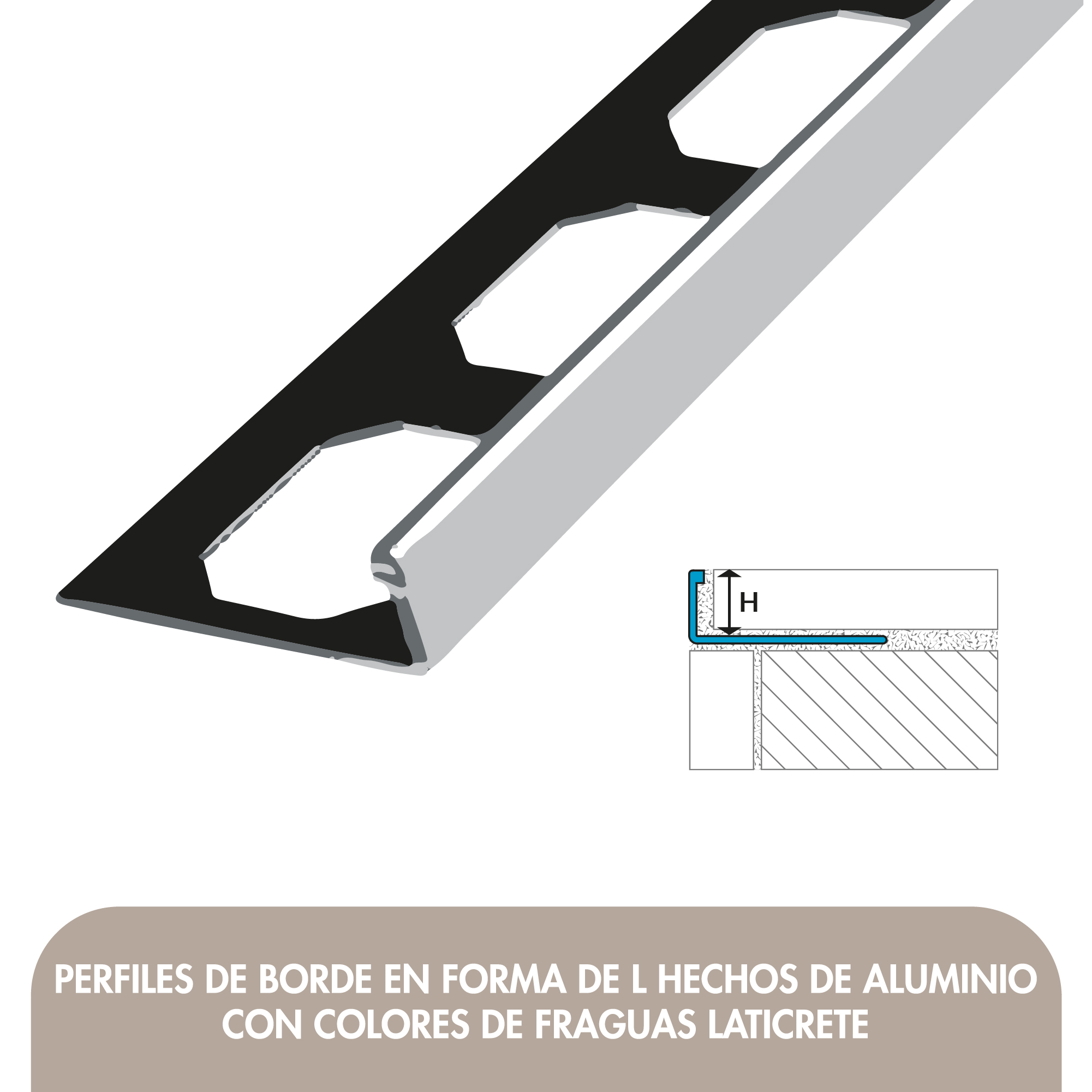

L-SHAPED ALUMINUM PROFILES

Prodotto #

The 10 mm aluminum L-shaped profiles from fuma-Bautec have been specially developed to protect tile edges. They are suitable for all domestic and commercial areas with a length of 250 m.

Colore / Finitura:

Panoramica dei prodotti

L-shaped profiles by fuma-Bautec were especially developed for protection of tile edges. They are suitable for all domestic and commercial areas. Because of their special angle and different materials, it is possible to provide edge protection even in areas of permanent and strong stresses. These special profiles were designed to transfer impact stresses uniformly into the tile covering and base material. This minimises the chances of damage to the decorative covering. Besides the protective function, the L-shaped pro- files also meet the highest decorative requirements. They provide clean transitions and limits, e.g. between carpet and parquet. They can be used as edge protection as well as for surface definition.

Info e Guide

  • Schede tecniche dei prodotti
  • Garanzie
  • Informazioni di marketing
  • Schede di sicurezza
  • Approvazioni e certificazioni
  • Informazioni sull'installazione

Caratteristiche e vantaggi

  • Height: 10 mm
  • Length: 250 cm
  • Material: Aluminum 6060 according to DIN EN 755-1 (aluminum) AlMgSi0.5
  • Color coating according to GSB: > 60
  • Fire resistance according to DIN EN13501: A1 (non-flammable)
  • Linear expansion coefficient: 24 x 10-6 m/m°C
  • Approx. density: 2.7 – 2.8 kg/dm3
  • Hardness approx.: 70 – 80 HBapprox.
  • Chemical resistance: approx. 4.5 – 8.5 pH
  • Melting point: approx. 660 °C
  • Other properties: Production in accordance with DIN EN 120-1 Aluminum and aluminum alloys: technical delivery conditions.

Specifiche dei prodotti

Dettagli

Prodotto n.
Brevetto n.

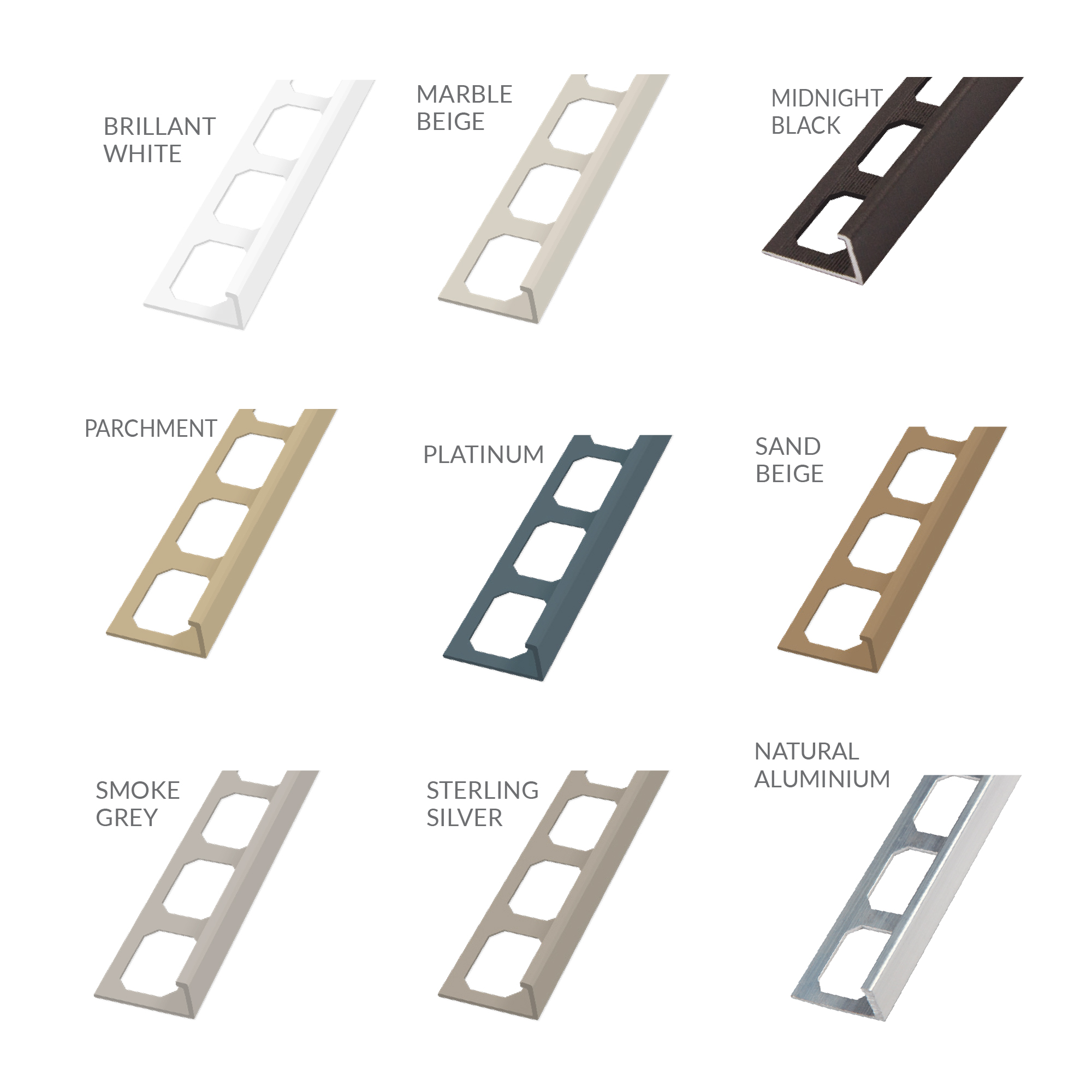

Colori disponibili Brilliant White, Marble Beige, Midnight Black, Natural Grey, Parchment, Platinum, Sand Beige, Smoke Grey, Sterling Silver
Parte del sistema LATICRETE
Disponibilità paese Costa Rica, Honduras, Panama
Sottofondi idonei
Dimensioni imballaggio

Garanzie disponibili

WARRANTIE (English)
