SQUARE ALUMINUM PROFILES
产品 #
The 10 mm square steel profiles from fuma-Bautec meet the most demanding requirements in terms of mechanical load. They are the ideal choice for sophisticated and attractive entrance areas with a length of 250 m.
产品概述

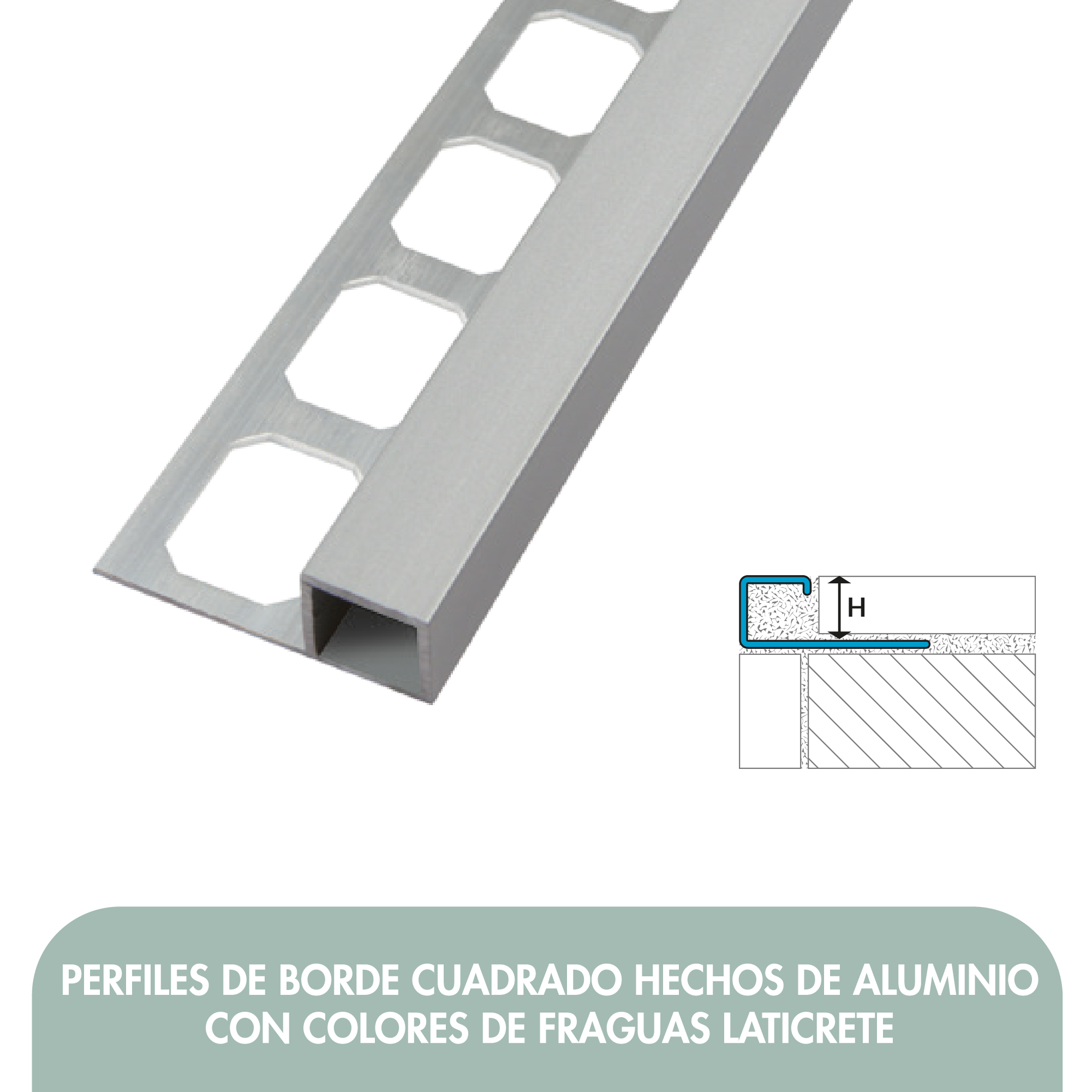

Square edge profiles from fuma-Bautec are designed for dividing areas, protecting edges and for edging. They are square in profile and the equal dimensions on all four sides allow for corners to be highly attractive in appearance. They are ideal for use where- ver walls need to meet the utmost aesthetic requirements. When square edge profiles is aligned with tiled and natural stone sur- faces, the results are first rate and elegant in design. Apart from their decorative attributes, they also provide perfect protection for corners and surface edges.
信息和指南
-
产品规格书
-
保证
-
营销信息
-
安全数据表
-
批准和认证
-
安装信息
特点和优势
- Height: 10 mm
- Length: 250 cm
- Material: Aluminum 6060 according to DIN EN 755-1 (aluminum) AlMgSi0.5
- Thickness: approx. 1.5 mm
- Fire resistance according to DIN EN 13501: A1 (non-flammable)
- Linear expansion coefficient: 24 x 10-6 m/m°C
- Approx. density: 2.7–2.8 kg/dm3
- Hardness approx.: 70 – 80 HB
- Chemical resistance: approx. 4.5 – 8.5 pH
- Melting point: approx. 660 °C
- Other properties: Production in accordance with DIN EN 120-1 Aluminum and aluminum alloys: technical delivery conditions.
产品说明书
详
| 产品编号 | |
|---|---|
| 专利号 | |

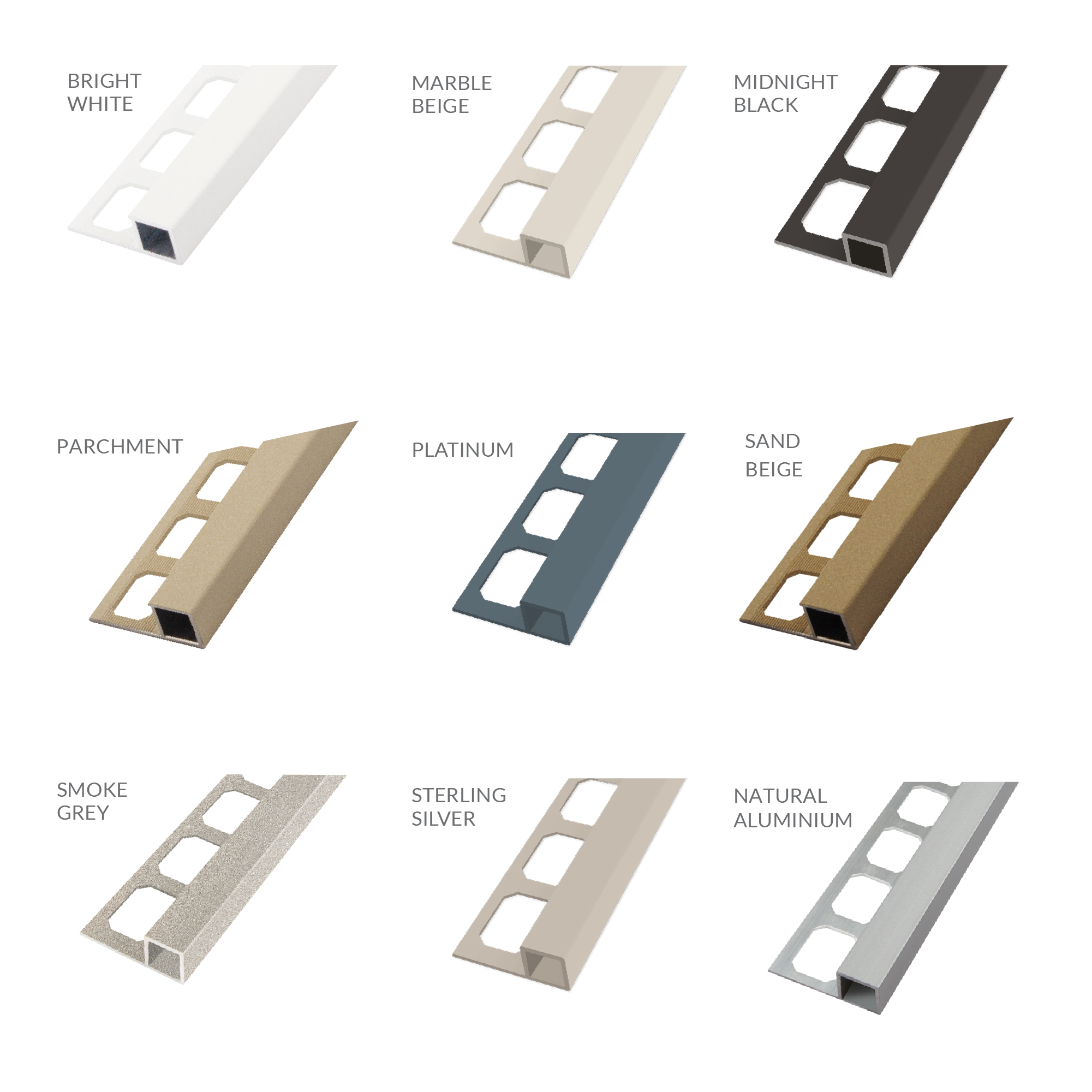

| 可用颜色 | Bright White, Marble Beige, Midnight Black, Natural Grey, Parchment, Platinum, Sand Beige, Smoke Grey, Sterling Silver |
| 系统组分 | |
| 在以下国家/地区有售 | Costa Rica, Honduras, Panama |
| 适用基面 | |
| 包装尺寸 |
可用保修
| WARRANTIE (English) |
|---|
