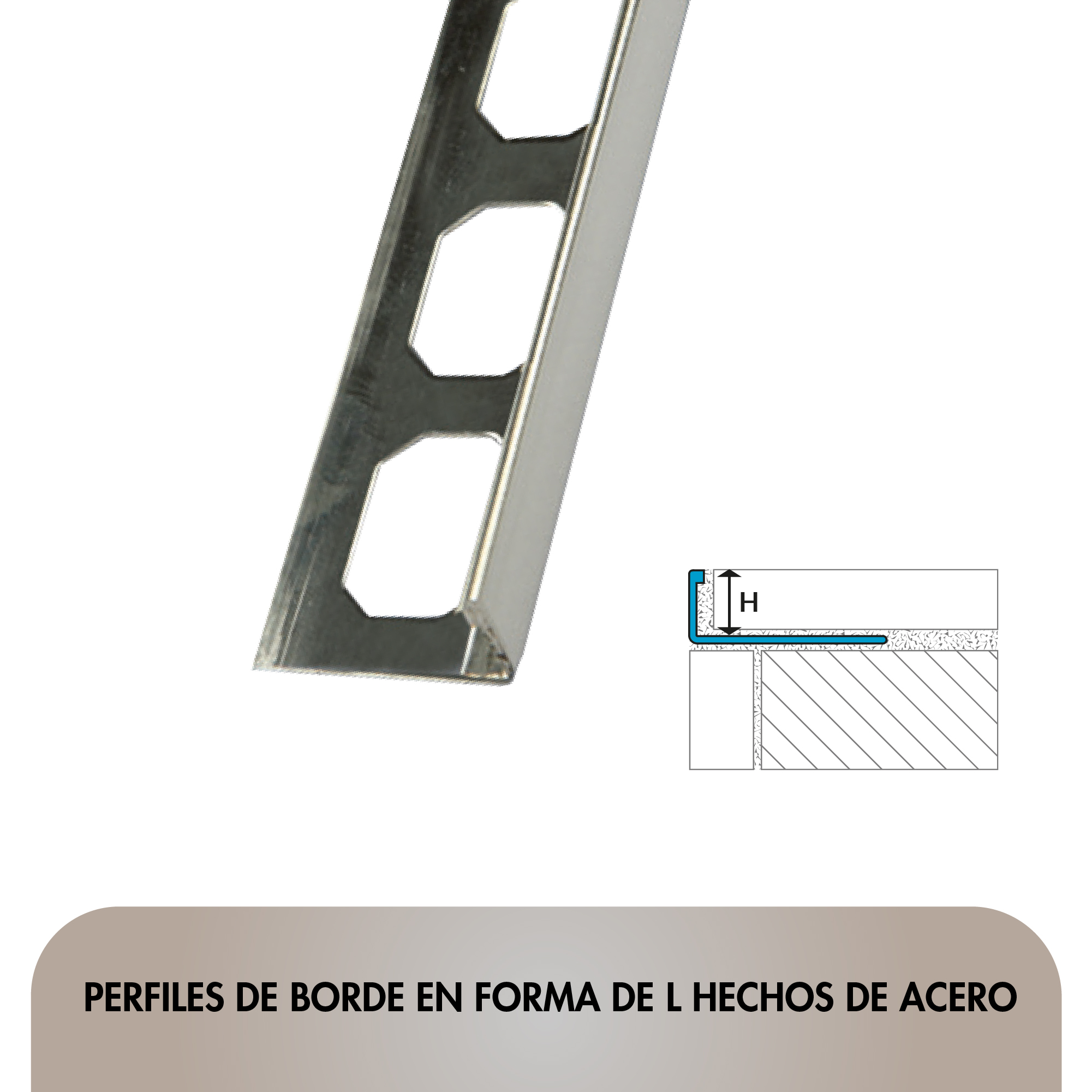

L-shaped steel profiles

Produit #

The 10 mm steel L-shaped profiles from fuma-Bautec have been specially developed to protect tile edges. They are suitable for all domestic and commercial areas with a length of 250 m.

Couleur / Finition:

Aperçu du produit

L-shaped profiles by fuma-Bautec were especially developed for protection of tile edges. They are suitable for all domestic and commercial areas. Because of their special angle and different materials, it is possible to provide edge protection even in areas of permanent and strong stresses. These special profiles were designed to transfer impact stresses uniformly into the tile covering and base material. This minimises the chances of damage to the decorative covering. Besides the protective function, the L-shaped pro- files also meet the highest decorative requirements. They provide clean transitions and limits, e.g. between carpet and parquet. They can be used as edge protection as well as for surface definition.

Infos et guides

  • Fiches de données de produit
  • Garanties
  • Informations sur le marketing
  • Fiches de données de sécurité
  • Approbations et certifications
  • Informations sur l’installation

Caractéristiques et avantages

  • Height: 10 mm
  • Length: 250 cm
  • Material: V2A stainless steel (304) Material number: 1.4301 Ingot X5CrNi18-10
  • Fire resistance according to DIN EN 13501: A1 (non-flammable)
  • Linear expansion coefficient: 16 x 10-6 m/m°C
  • Approx. density: 7.9 kg/dm3
  • Approx. hardness: 250 HB
  • Tensile strength Rm at 20 °C: 500 – 700 N/mm2
  • Elongation A5 at 20 °C1 %: 35%
  • Yield strength Rp 1.0 at 20 °C: 250 N/mm2
  • Other properties: Production control according to DIN 18200

Spécifications du produit

Détails

Produit #
Brevet #(s)
Couleurs disponibles Polished Stainless Steel (Gloss)
Pièce du système
Disponibilité par pays Costa Rica, Honduras, Panama
Substrats appropriés
Résumé d’emballage

Garanties disponibles

WARRANTIE (English)
