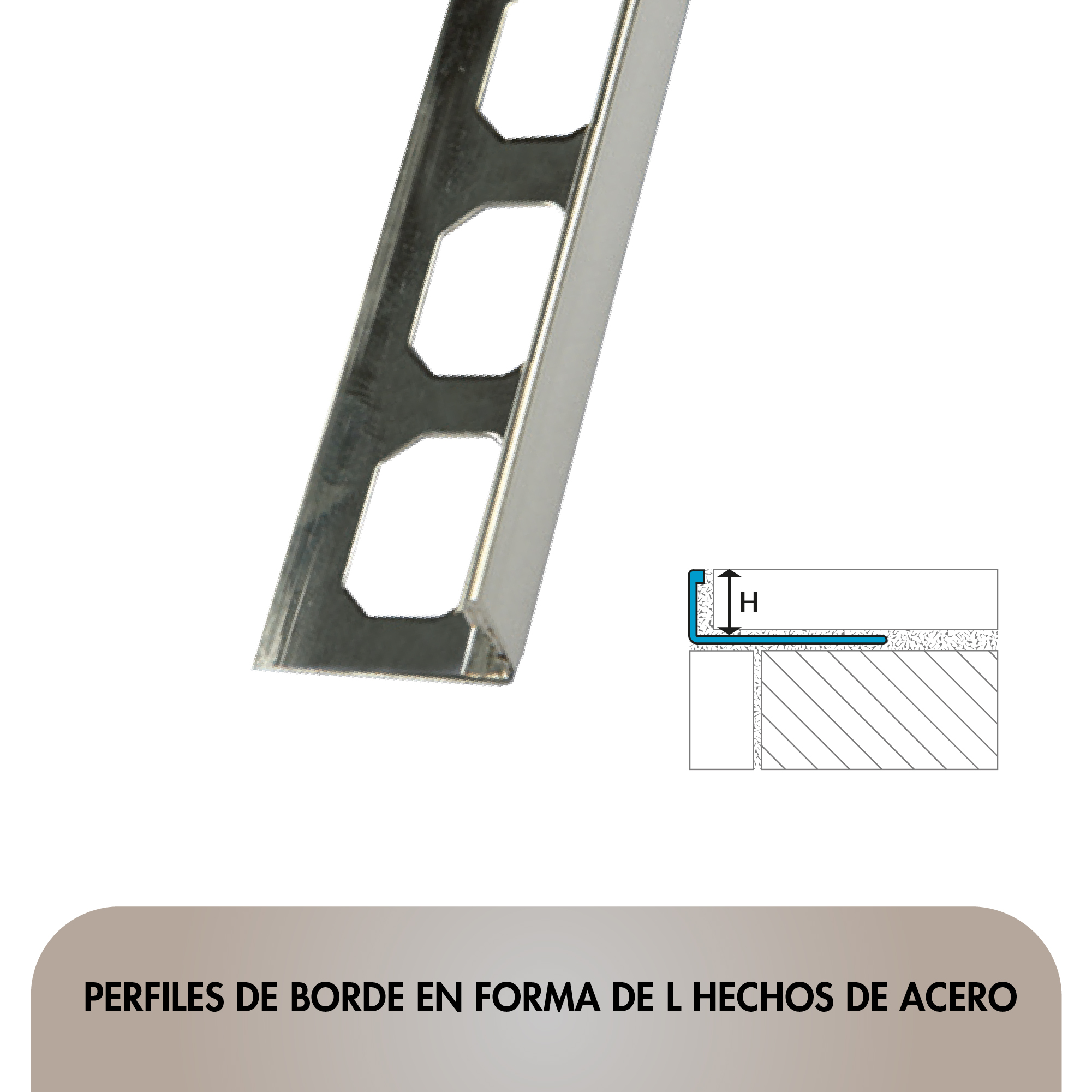

L-shaped steel profiles

Prodotto #

The 10 mm steel L-shaped profiles from fuma-Bautec have been specially developed to protect tile edges. They are suitable for all domestic and commercial areas with a length of 250 m.

Colore / Finitura:

Panoramica dei prodotti

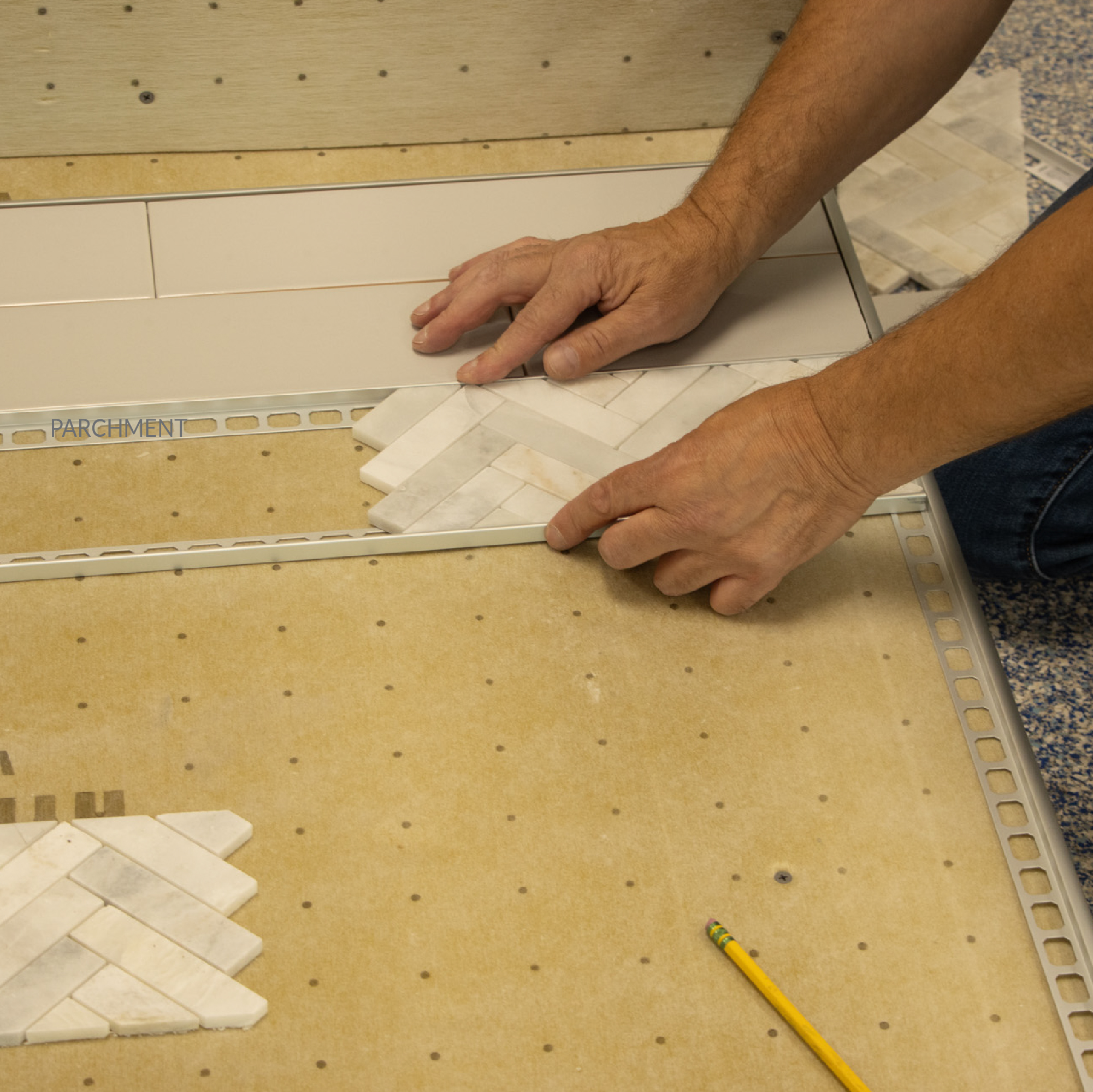

L-shaped profiles by fuma-Bautec were especially developed for protection of tile edges. They are suitable for all domestic and commercial areas. Because of their special angle and different materials, it is possible to provide edge protection even in areas of permanent and strong stresses. These special profiles were designed to transfer impact stresses uniformly into the tile covering and base material. This minimises the chances of damage to the decorative covering. Besides the protective function, the L-shaped pro- files also meet the highest decorative requirements. They provide clean transitions and limits, e.g. between carpet and parquet. They can be used as edge protection as well as for surface definition.

Info e Guide

  • Schede tecniche dei prodotti
  • Garanzie
  • Informazioni di marketing
  • Schede di sicurezza
  • Approvazioni e certificazioni
  • Informazioni sull'installazione

Caratteristiche e vantaggi

  • Height: 10 mm
  • Length: 250 cm
  • Material: V2A stainless steel (304) Material number: 1.4301 Ingot X5CrNi18-10
  • Fire resistance according to DIN EN 13501: A1 (non-flammable)
  • Linear expansion coefficient: 16 x 10-6 m/m°C
  • Approx. density: 7.9 kg/dm3
  • Approx. hardness: 250 HB
  • Tensile strength Rm at 20 °C: 500 – 700 N/mm2
  • Elongation A5 at 20 °C1 %: 35%
  • Yield strength Rp 1.0 at 20 °C: 250 N/mm2
  • Other properties: Production control according to DIN 18200

Specifiche dei prodotti

Dettagli

Prodotto n.
Brevetto n.
Colori disponibili Polished Stainless Steel (Gloss)
Parte del sistema
Disponibilità paese Costa Rica, Honduras, Panama
Sottofondi idonei
Dimensioni imballaggio

Garanzie disponibili

WARRANTIE (English)
